LTC1550LCMS8#TRPBF IC REG CHARG PUMP ADJ 20MA 8MSOP Analog Devices Inc.

Name: LTC1550LCMS8TRPBF IC REG CHARG PUMP ADJ 20MA 8MSOP Analog Devices Inc
Brand: Analog Devices Inc.
Price: 1 USD

Brand Name : Analog Devices Inc.

Model Number : LTC1550LCMS8#TRPBF

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Function : Step-Up/Step-Down

Output Configuration : Negative

Topology : Charge Pump

Output Type : Adjustable

Number of Outputs : 1

Voltage - Input (Min) : 2.7V

Voltage - Input (Max) : 5.5V

Voltage - Output (Min/Fixed) : -1.225V

Voltage - Output (Max) : -4.8V

Current - Output : 20mA

Frequency - Switching : 900kHz

Synchronous Rectifier : No

Operating Temperature : 0°C ~ 70°C (TA)

Mounting Type : Surface Mount

Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

Supplier Device Package : 8-MSOP

Contact Now

Product Details

DESCRIPTION

The LTC®1550L/LTC1551L are switched capacitor charge pump voltage inverters which include internal linear post regulators to minimize output ripple. The LTC1550L fixed output voltage versions include –4.1V, –2.5V and –2V with ripple voltages typically below 1mVP-P. The LTC1550L is also available in an adjustable output voltage version. The LTC1550L/LTC1551L are ideal for use as bias voltage generators for GaAs transmitter FETs in portable RF and cellular telephone applications.

FEATURES

■ Regulated Negative Voltage from a Single Positive Supply
■ Low Output Ripple: Less Than 1mVP-P Typ
■ High Charge Pump Frequency: 900kHz
■ Small Charge Pump Capacitors: 0.1µF
■ Requires Only Four External Capacitors
■ Fixed –4.1V, –2.5V, –2V or Adjustable Output
■ Shutdown Mode Drops Supply Current to <1µA
■ High Output Current: Up to 20mA (Depending on VCC to VOUT Range)
■ Output Regulation: 2.5% Over Line, Load and Temperature
■ Available in 8-Lead MSOP, 8-Lead Narrow SO and 16-Lead Narrow SSOP

APPLICATIONS

■ GaAs FET Bias Generators
■ Negative Supply Generators
■ Battery-Powered Systems
■ Single Supply Applications

Specifications

Attribute	Attribute Value
Manufacturer	Analog Devices / Linear Technology
Product Category	DC Switching Regulators
Series	-
Packaging	Tape & Reel (TR) Alternate Packaging
Package-Case	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Operating-Temperature	0°C ~ 70°C (TA)
Mounting-Type	Surface Mount
Output-Type	Adjustable
Function	Step-Up/Step-Down
Supplier-Device-Package	8-MSOP
Number-of-Outputs	1 Output
Topology	Charge Pump
Frequency-Switching	900kHz
Current-Output	20mA
Output-Configuration	Negative
Output Voltage	-1.225V
Voltage-Output-Max	-4.8V
Synchronous-Rectifier	No
Voltage-Input-Min	2.7V
Voltage-Input-Max	5.5V

Descriptions

Charge Pump Switching Regulator IC Negative Adjustable -1.225V 1 Output 20mA 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)

LTC1550L - Low Noise, Switched Capacitor Regulated Voltage Inverters

Wholesale LTC1550LCMS8#TRPBF IC REG CHARG PUMP ADJ 20MA 8MSOP Analog Devices Inc. from china suppliers

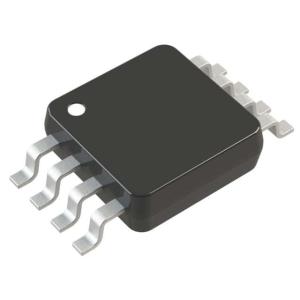

LTC1550LCMS8#TRPBF IC REG CHARG PUMP ADJ 20MA 8MSOP Analog Devices Inc. Images
